BMW 5 Series Sedan

2024 • Sedan

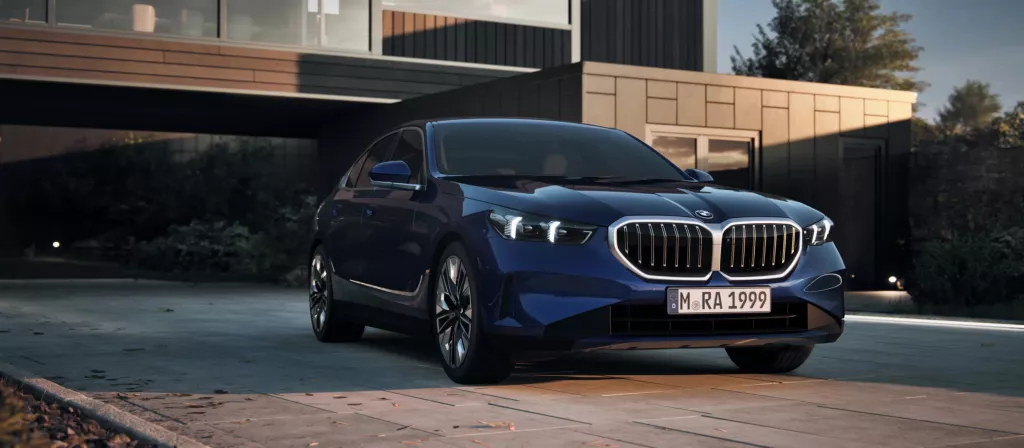

BMW 5 Series Sedan gallery

Electric Range

88

km

Battery Capacity

19.4

kWh

Power Output

489

HP

Range Simulator

Test real-world range with different driving conditions and scenarios

⭐

Safety Rating

Adult Occupant
91%
Child Occupant
87%
Pedestrian
87%
Safety Assist
76%
5/5
Euro NCAP
2023
Source: Euro NCAP

BATTERY

19.4 kWh

Battery size in kilowatt hours

RANGE (KM)

88 km (WLTP)

Mileage in kilometers according to the WLTP/EPA standard

ON-BOARD CHARGER (AC)

Można zwiększyć do 11 kW

3,7 kW

Maximum charging power AC

MAX CHARGING POWER (DC)

Not supported

Maximum charging power with fast charging/lightning charging

CHARGING SOCKET (AC)

Type 2Mennekes

Charging socket in the car for normal charging

FAST CHARGING (DC)

Not supported

Charging socket in the car for fast charging

General

Brand
BMW
Model
5 Series Sedan
Year
2024
Segment
Sedan
Battery Architecture
modular

Electric Performance

AC Charge Time
3 hours
DC Charge Time
N/A minutes
Battery Chemistry
Li-ion
Battery Voltage
400V

Engine & Performance

Power
489 HP
Engine
3L
Fuel Consumption
0.8 L/100km
CO₂ Emission
18 g/km
Electric Motor Power
197 HP
Emission Standard
Euro 6e
Drivetrain
AWD
Transmission
Steptronic

Comfort & Space

Trunk Volume
520 L
Seats
5
Warranty
3 years
Country Availability
DE,FR,UK,PL
Weight
2050 kg
Length
5060 mm
Width
1900 mm
Height
1515 mm
Wheelbase
2995 mm
Max Trunk Volume
520 L

Key Technical Specifications — BMW 5 Series Sedan (2024)

Official manufacturer and WLTP homologated technical data sheet for BMW 5 Series Sedan plug-in hybrid.

Technical specifications sheet for BMW 5 Series Sedan (2024) Plug-in Hybrid
Specification ParameterOfficial Value
Vehicle ModelBMW 5 Series Sedan
WLTP Electric Range88 km
Battery Capacity19.4 kWh
WLTP Fuel Consumption0.8 L / 100 km
CO₂ Emissions18 g / km
System Power Output489 HP (365 kW)
Combustion Engine3 L
Electric Motor Output197 HP (147 kW)
AC Charging3.7 kW
DC Fast ChargingNot supported
Seating Capacity5 Seats
Luggage / Boot Capacity520 L (Max: 520 L)
Dimensions (L × W × H)5060 × 1900 × 1515 mm
Curb Weight2050 kg
Euro NCAP Safety★★★★★ (5 Stars)
Manufacturer Warranty3 Years
