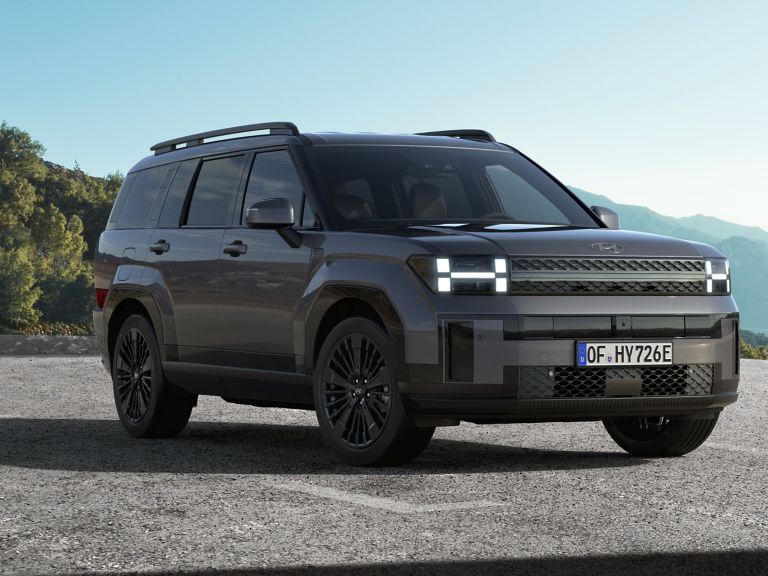

Hyundai Santa Fe

Name: Hyundai Santa Fe (2025) Plug-in Hybrid
Brand: Hyundai

2025 • SUV

Electric Range

Battery Capacity

13.8

kWh

Power Output

265

Range Simulator

Test real-world range with different driving conditions and scenarios

⭐

Safety Rating

Adult Occupant

92%

Child Occupant

83%

Pedestrian

74%

Safety Assist

78%

5/5

Euro NCAP

2022

Source: Euro NCAP

BATTERY

13.8 kWh

Battery size in kilowatt hours

RANGE (KM)

65 km (WLTP)

Mileage in kilometers according to the WLTP/EPA standard

ON-BOARD CHARGER (AC)

11,0 kW

Maximum charging power AC

MAX CHARGING POWER (DC)

40 kW DC

Maximum charging power with fast charging/lightning charging

CHARGING SOCKET (AC)

Type 2Mennekes

Charging socket in the car for normal charging

FAST CHARGING (DC)

40 kW DC

Charging socket in the car for fast charging

General

Brand

Hyundai

Model

Santa Fe

Year

2025

Segment

SUV

Battery Architecture

modular

Electric Performance

AC Charge Time

3.2 hours

DC Charge Time

N/A minutes

Battery Chemistry

NCM

Battery Voltage

400V

Engine & Performance

Power

265 HP

Engine

1.6L

Fuel Consumption

1.6 L/100km

CO₂ Emission

36 g/km

Electric Motor Power

90 HP

Emission Standard

Euro 6d

Comfort & Space

Trunk Volume

571 L

Seats

Warranty

5 years

Country Availability

DE,FR,UK,IT,ES

Weight

2000 kg

Length

4930 mm

Width

1915 mm

Height

1720 mm

Wheelbase

2865 mm

Max Trunk Volume

571 L

Key Technical Specifications — Hyundai Santa Fe (2025)

Official manufacturer and WLTP homologated technical data sheet for Hyundai Santa Fe plug-in hybrid.

Technical specifications sheet for Hyundai Santa Fe (2025) Plug-in Hybrid
Specification Parameter	Official Value	Standard / Details
Vehicle Model	Hyundai Santa Fe	2025 Model Year • SUV
WLTP Electric Range	65 km	WLTP EAER (Combined pure electric)
Battery Capacity	13.8 kWh	NCM
WLTP Fuel Consumption	1.6 L / 100 km	WLTP Weighted Combined
CO₂ Emissions	36 g / km	Euro 6d homologation
System Power Output	265 HP (198 kW)	ICE + Electric Combined
Combustion Engine	1.6 L	Internal Combustion Engine (ICE)
Electric Motor Output	90 HP (67 kW)	Synchronous electric motor
AC Charging	11 kW	Type 2 (Mennekes) AC socket
DC Fast Charging	Yes (40 kW)	CCS / CHAdeMO DC rapid charge
Seating Capacity	7 Seats	3-Row Family Vehicle
Luggage / Boot Capacity	571 L (Max: 571 L)	VDA measurement method
Dimensions (L × W × H)	4930 × 1915 × 1720 mm	Wheelbase: 2865 mm
Curb Weight	2000 kg	Unladen weight EU
Euro NCAP Safety	★★★★★ (5 Stars)	Adult: 92% • Child: 83%
Manufacturer Warranty	5 Years	Official European warranty coverage
