Hyundai Tucson IV

2023 • SUV

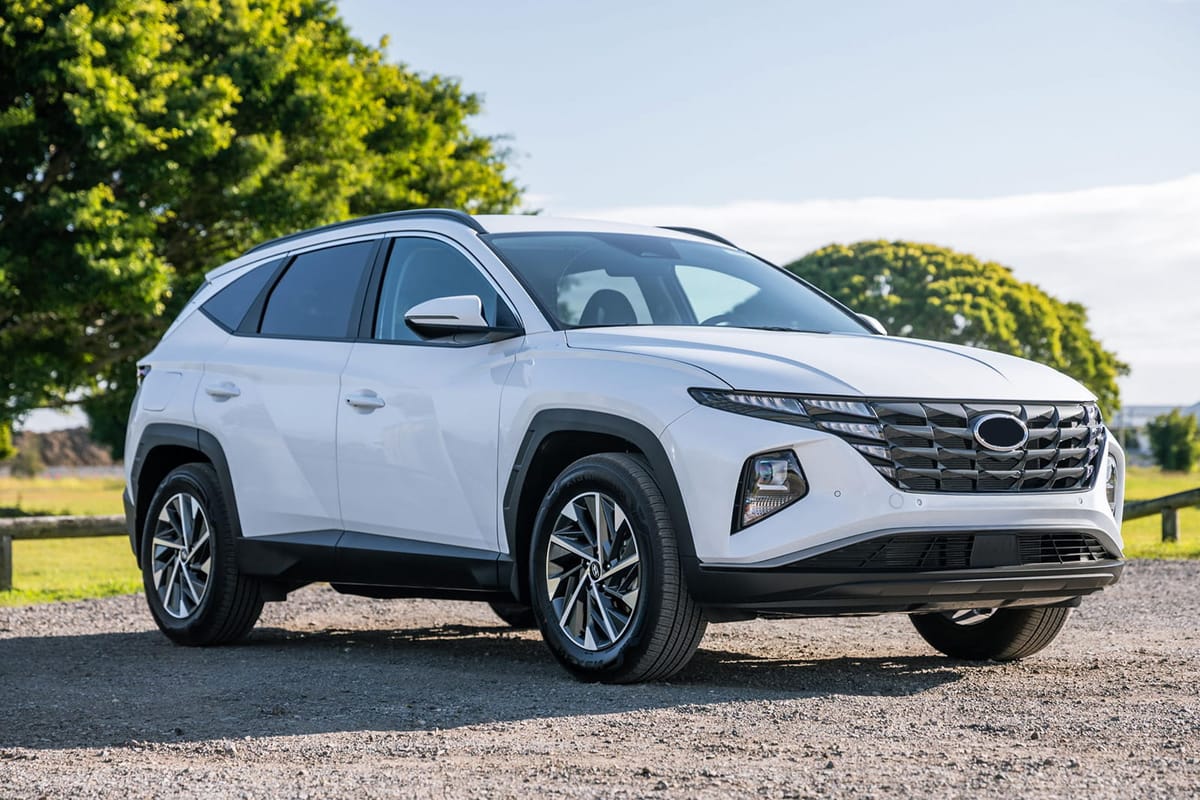

Hyundai Tucson IV gallery

Electric Range

65

km

Battery Capacity

13.8

kWh

Power Output

265

HP

Range Simulator

Test real-world range with different driving conditions and scenarios

⭐

Safety Rating

Adult Occupant
92%
Child Occupant
83%
Pedestrian
74%
Safety Assist
78%
5/5
Euro NCAP
2022
Source: Euro NCAP

BATTERY

13.8 kWh

Battery size in kilowatt hours

RANGE (KM)

65 km (WLTP)

Mileage in kilometers according to the WLTP/EPA standard

ON-BOARD CHARGER (AC)

7,2 kW

Maximum charging power AC

MAX CHARGING POWER (DC)

Not supported

Maximum charging power with fast charging/lightning charging

CHARGING SOCKET (AC)

Type 2Mennekes

Charging socket in the car for normal charging

FAST CHARGING (DC)

Not supported

Charging socket in the car for fast charging

General

Brand
Hyundai
Model
Tucson IV
Year
2023
Segment
SUV
Battery Architecture
modular

Electric Performance

AC Charge Time
3.2 hours
DC Charge Time
N/A minutes
Battery Chemistry
NCM
Battery Voltage
400V

Engine & Performance

Power
265 HP
Engine
1.6L
Fuel Consumption
1.4 L/100km
CO₂ Emission
32 g/km
Electric Motor Power
90 HP
Emission Standard
Euro 6d
Drivetrain
4WD
Transmission
Automatic

Comfort & Space

Trunk Volume
513 L
Seats
5
Warranty
5 years
Country Availability
DE,FR,UK,IT,ES
Weight
1850 kg
Length
4630 mm
Width
1865 mm
Height
1665 mm
Wheelbase
2755 mm
Max Trunk Volume
513 L

Key Technical Specifications — Hyundai Tucson IV (2023)

Official manufacturer and WLTP homologated technical data sheet for Hyundai Tucson IV plug-in hybrid.

Technical specifications sheet for Hyundai Tucson IV (2023) Plug-in Hybrid
Specification ParameterOfficial Value
Vehicle ModelHyundai Tucson IV
WLTP Electric Range65 km
Battery Capacity13.8 kWh
WLTP Fuel Consumption1.4 L / 100 km
CO₂ Emissions32 g / km
System Power Output265 HP (198 kW)
Combustion Engine1.6 L
Electric Motor Output90 HP (67 kW)
AC Charging7.2 kW
DC Fast ChargingNot supported
Seating Capacity5 Seats
Luggage / Boot Capacity513 L (Max: 513 L)
Dimensions (L × W × H)4630 × 1865 × 1665 mm
Curb Weight1850 kg
Euro NCAP Safety★★★★★ (5 Stars)
Manufacturer Warranty5 Years
