Hyundai Tucson IV (facelift 2024)

Name: Hyundai Tucson IV (facelift 2024) (2024) Plug-in Hybrid
Brand: Hyundai

2024 • SUV

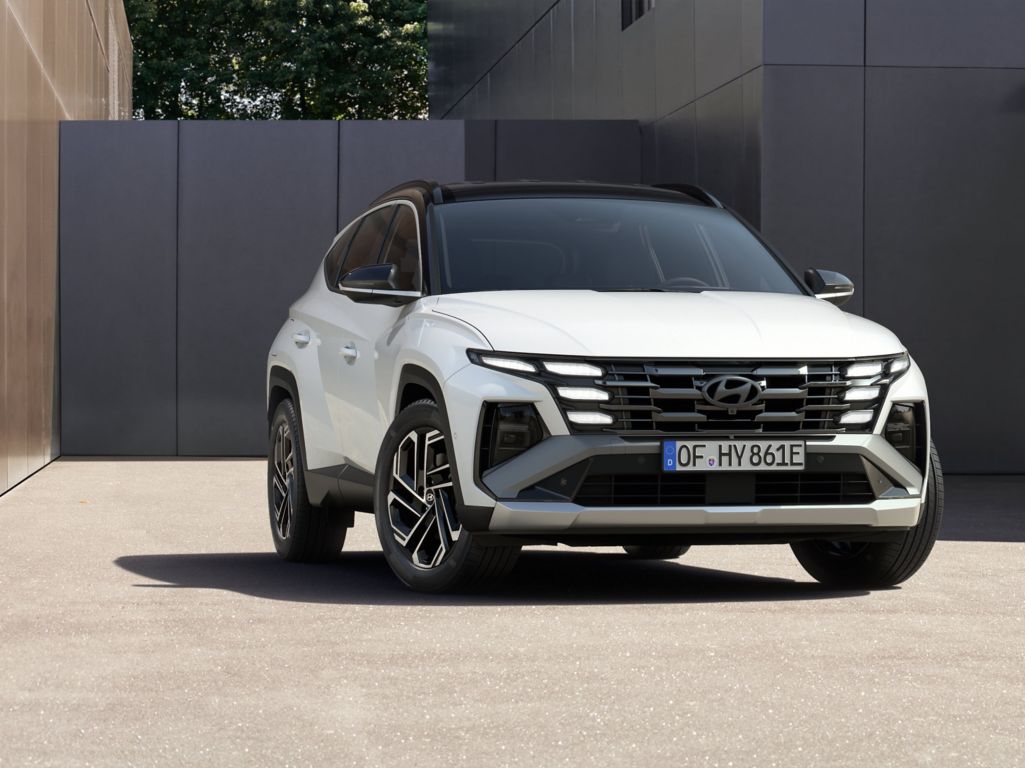

Hyundai Tucson IV (facelift 2024) gallery

Electric Range

Battery Capacity

13.8

kWh

Power Output

253

Range Simulator

Test real-world range with different driving conditions and scenarios

⭐

Safety Rating

Adult Occupant

92%

Child Occupant

83%

Pedestrian

74%

Safety Assist

78%

5/5

Euro NCAP

2022

Source: Euro NCAP

BATTERY

13.8 kWh

Battery size in kilowatt hours

RANGE (KM)

65 km (WLTP)

Mileage in kilometers according to the WLTP/EPA standard

ON-BOARD CHARGER (AC)

7,2 kW

Maximum charging power AC

MAX CHARGING POWER (DC)

Not supported

Maximum charging power with fast charging/lightning charging

CHARGING SOCKET (AC)

Type 2Mennekes

Charging socket in the car for normal charging

FAST CHARGING (DC)

Not supported

Charging socket in the car for fast charging

General

Brand

Hyundai

Model

Tucson IV (facelift 2024)

Year

2024

Segment

SUV

Battery Architecture

modular

Electric Performance

AC Charge Time

3.2 hours

DC Charge Time

N/A minutes

Battery Chemistry

NCM

Battery Voltage

400V

Engine & Performance

Power

253 HP

Engine

1.6L

Fuel Consumption

1.4 L/100km

CO₂ Emission

32 g/km

Electric Motor Power

90 HP

Emission Standard

Euro 6E

Drivetrain

4WD

Transmission

Automatic

Comfort & Space

Trunk Volume

513 L

Seats

Warranty

5 years

Country Availability

DE,FR,UK,IT,ES

Weight

1850 kg

Length

4630 mm

Width

1865 mm

Height

1665 mm

Wheelbase

2755 mm

Max Trunk Volume

513 L

Key Technical Specifications — Hyundai Tucson IV (facelift 2024) (2024)

Official manufacturer and WLTP homologated technical data sheet for Hyundai Tucson IV (facelift 2024) plug-in hybrid.

Technical specifications sheet for Hyundai Tucson IV (facelift 2024) (2024) Plug-in Hybrid
Specification Parameter	Official Value	Standard / Details
Vehicle Model	Hyundai Tucson IV (facelift 2024)	2024 Model Year • SUV
WLTP Electric Range	65 km	WLTP EAER (Combined pure electric)
Battery Capacity	13.8 kWh	NCM
WLTP Fuel Consumption	1.4 L / 100 km	WLTP Weighted Combined
CO₂ Emissions	32 g / km	Euro 6E homologation
System Power Output	253 HP (189 kW)	ICE + Electric Combined
Combustion Engine	1.6 L	Internal Combustion Engine (ICE)
Electric Motor Output	90 HP (67 kW)	Synchronous electric motor
AC Charging	7.2 kW	Type 2 (Mennekes) AC socket
DC Fast Charging	Not supported	AC Charging only
Seating Capacity	5 Seats	Standard 2-Row Layout
Luggage / Boot Capacity	513 L (Max: 513 L)	VDA measurement method
Dimensions (L × W × H)	4630 × 1865 × 1665 mm	Wheelbase: 2755 mm
Curb Weight	1850 kg	Unladen weight EU
Euro NCAP Safety	★★★★★ (5 Stars)	Adult: 92% • Child: 83%
Manufacturer Warranty	5 Years	Official European warranty coverage
