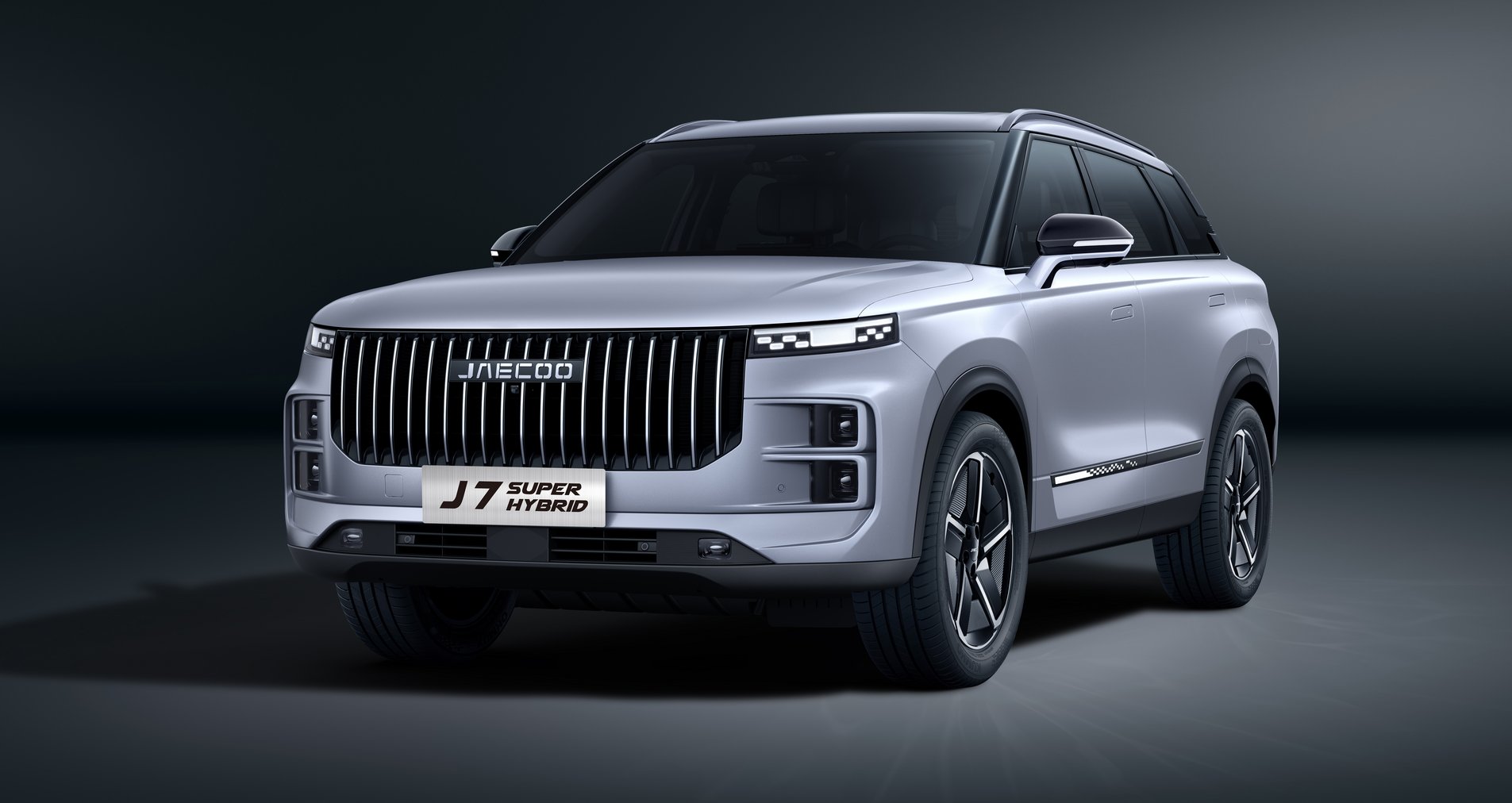

Jaecoo J7 SHS 1.5 TGDI

Name: Jaecoo J7 SHS 1.5 TGDI (2023) Plug-in Hybrid
Brand: Jaecoo

2023 • SUV

Electric Range

Battery Capacity

18.316

kWh

Power Output

347

Range Simulator

Test real-world range with different driving conditions and scenarios

⭐

Safety Rating

Adult Occupant

91%

Child Occupant

87%

Pedestrian

87%

Safety Assist

76%

5/5

Euro NCAP

2023

Source: Euro NCAP

BATTERY

18.316 kWh

Battery size in kilowatt hours

RANGE (KM)

90 km (WLTP)

Mileage in kilometers according to the WLTP/EPA standard

ON-BOARD CHARGER (AC)

6.6 kW AC charging (approximately 3 hours for 30-80%). Standard home charging: 3.3 kW (approximately 8.5 hours for 0-100%). DC fast charging: 40 kW (30-80% in 20 minutes)

6,6 kW

Maximum charging power AC

MAX CHARGING POWER (DC)

40 kW DC

Maximum charging power with fast charging/lightning charging

CHARGING SOCKET (AC)

Type 2Mennekes

Charging socket in the car for normal charging

FAST CHARGING (DC)

40 kW DC

Charging socket in the car for fast charging

General

Brand

Jaecoo

Model

J7 SHS 1.5 TGDI

Year

2023

Segment

SUV

Battery Architecture

modular

Electric Performance

AC Charge Time

3.5 hours

DC Charge Time

N/A minutes

Battery Chemistry

LiFePO4

Battery Voltage

339.2V

Engine & Performance

Power

347 HP

Engine

1.5L

Fuel Consumption

0.7 L/100km

CO₂ Emission

9 g/km

Electric Motor Power

204 HP

Emission Standard

Euro 6e

Drivetrain

AWD

Transmission

DHT

Comfort & Space

Trunk Volume

405 L

Seats

Warranty

3 years

Country Availability

DE,FR,UK,IT,ES

Weight

1660 kg

Length

4700 mm

Width

1900 mm

Height

1700 mm

Wheelbase

2800 mm

Max Trunk Volume

1275 L

Key Technical Specifications — Jaecoo J7 SHS 1.5 TGDI (2023)

Official manufacturer and WLTP homologated technical data sheet for Jaecoo J7 SHS 1.5 TGDI plug-in hybrid.

Technical specifications sheet for Jaecoo J7 SHS 1.5 TGDI (2023) Plug-in Hybrid
Specification Parameter	Official Value	Standard / Details
Vehicle Model	Jaecoo J7 SHS 1.5 TGDI	2023 Model Year • SUV
WLTP Electric Range	90 km	WLTP EAER (Combined pure electric)
Battery Capacity	18.316 kWh	LiFePO4
WLTP Fuel Consumption	0.7 L / 100 km	WLTP Weighted Combined
CO₂ Emissions	9 g / km	Euro 6e homologation
System Power Output	347 HP (259 kW)	ICE + Electric Combined
Combustion Engine	1.5 L	Internal Combustion Engine (ICE)
Electric Motor Output	204 HP (152 kW)	Synchronous electric motor
AC Charging	6.6 kW	Type 2 (Mennekes) AC socket
DC Fast Charging	Yes (40 kW)	CCS / CHAdeMO DC rapid charge
Seating Capacity	5 Seats	Standard 2-Row Layout
Luggage / Boot Capacity	405 L (Max: 1275 L)	VDA measurement method
Dimensions (L × W × H)	4700 × 1900 × 1700 mm	Wheelbase: 2800 mm
Curb Weight	1660 kg	Unladen weight EU
Euro NCAP Safety	★★★★★ (5 Stars)	Adult: 91% • Child: 87%
Manufacturer Warranty	3 Years	Official European warranty coverage
