Jeep Compass 4xe 190HP

2024 • SUV

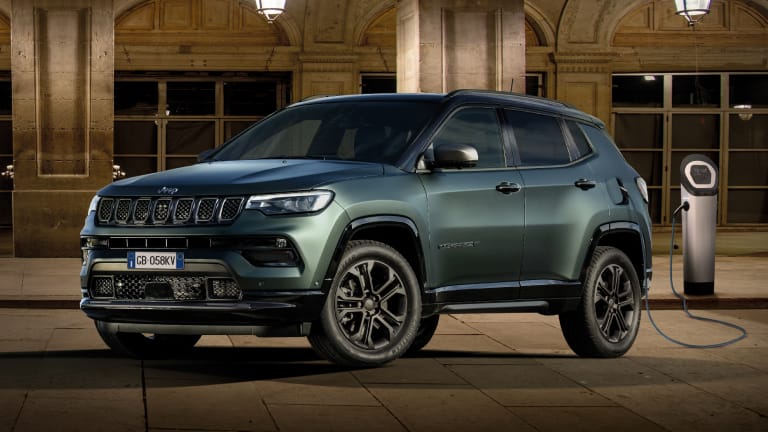

Jeep Compass 4xe 190HP gallery

Electric Range

56

km

Battery Capacity

11.4

kWh

Power Output

190

HP

Range Simulator

Test real-world range with different driving conditions and scenarios

⭐

Safety Rating

Adult Occupant
89%
Child Occupant
88%
Pedestrian
72%
Safety Assist
75%
5/5
Euro NCAP
2024
Source: Euro NCAP

BATTERY

11.4 kWh

Battery size in kilowatt hours

RANGE (KM)

56 km (WLTP)

Mileage in kilometers according to the WLTP/EPA standard

ON-BOARD CHARGER (AC)

7,2 kW

Maximum charging power AC

MAX CHARGING POWER (DC)

Not supported

Maximum charging power with fast charging/lightning charging

CHARGING SOCKET (AC)

Type 2Mennekes

Charging socket in the car for normal charging

FAST CHARGING (DC)

Not supported

Charging socket in the car for fast charging

General

Brand
Jeep
Model
Compass 4xe 190HP
Year
2024
Segment
SUV
Battery Architecture
modular

Electric Performance

AC Charge Time
2 hours
DC Charge Time
N/A minutes
Battery Chemistry
Li-Ion
Battery Voltage
400V

Engine & Performance

Power
190 HP
Engine
1.3L
Fuel Consumption
1.8 L/100km
CO₂ Emission
50 g/km
Electric Motor Power
60 HP
Emission Standard
Euro 6d-Final
Drivetrain
AWD
Transmission
Automatic

Comfort & Space

Trunk Volume
420 L
Seats
5
Warranty
3 years
Country Availability
DE,FR,UK,IT,ES
Weight
1860 kg
Length
4415 mm
Width
1819 mm
Height
1635 mm
Wheelbase
2636 mm
Max Trunk Volume
1230 L

Key Technical Specifications — Jeep Compass 4xe 190HP (2024)

Official manufacturer and WLTP homologated technical data sheet for Jeep Compass 4xe 190HP plug-in hybrid.

Technical specifications sheet for Jeep Compass 4xe 190HP (2024) Plug-in Hybrid
Specification ParameterOfficial Value
Vehicle ModelJeep Compass 4xe 190HP
WLTP Electric Range56 km
Battery Capacity11.4 kWh
WLTP Fuel Consumption1.8 L / 100 km
CO₂ Emissions50 g / km
System Power Output190 HP (142 kW)
Combustion Engine1.3 L
Electric Motor Output60 HP (45 kW)
AC Charging7.2 kW
DC Fast ChargingNot supported
Seating Capacity5 Seats
Luggage / Boot Capacity420 L (Max: 1230 L)
Dimensions (L × W × H)4415 × 1819 × 1635 mm
Curb Weight1860 kg
Euro NCAP Safety★★★★★ (5 Stars)
Manufacturer Warranty3 Years
