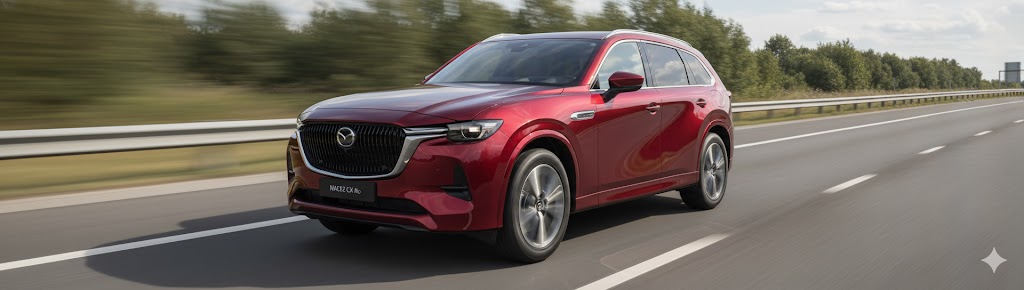

Mazda CX-80
2025 • SUV
Electric Range
60
kmBattery Capacity
17.8
kWhPower Output
327
HPRange Simulator
Test real-world range with different driving conditions and scenarios
⭐
Safety Rating
Adult Occupant
92%
Child Occupant
83%
Pedestrian
74%
Safety Assist
78%
5/5
Euro NCAP
2022
BATTERY
17.8 kWh
Battery size in kilowatt hours
RANGE (KM)
60 km (WLTP)
Mileage in kilometers according to the WLTP/EPA standard
ON-BOARD CHARGER (AC)
11,0 kW
Maximum charging power AC
MAX CHARGING POWER (DC)
40 kW DC
Maximum charging power with fast charging/lightning charging
CHARGING SOCKET (AC)
Type 2Mennekes
Charging socket in the car for normal charging
FAST CHARGING (DC)
40 kW DC
Charging socket in the car for fast charging
General
Brand
Mazda
Model
CX-80
Year
2025
Segment
SUV
Battery Architecture
modular
Electric Performance
AC Charge Time
4 hours
DC Charge Time
N/A minutes
Battery Chemistry
NCM
Battery Voltage
355V
Engine & Performance
Power
327 HP
Engine
2.5L
Fuel Consumption
1.5 L/100km
CO₂ Emission
33 g/km
Electric Motor Power
136 HP
Emission Standard
Euro 6d
Comfort & Space
Trunk Volume
570 L
Seats
5
Warranty
3 years
Country Availability
DE,FR,UK,IT,ES
Weight
2100 kg
Length
4995 mm
Width
1890 mm
Height
1710 mm
Wheelbase
3120 mm
Max Trunk Volume
570 L
Key Technical Specifications — Mazda CX-80 (2025)
Official manufacturer and WLTP homologated technical data sheet for Mazda CX-80 plug-in hybrid.
| Specification Parameter | Official Value |
|---|---|
| Vehicle Model | Mazda CX-80 |
| WLTP Electric Range | 60 km |
| Battery Capacity | 17.8 kWh |
| WLTP Fuel Consumption | 1.5 L / 100 km |
| CO₂ Emissions | 33 g / km |
| System Power Output | 327 HP (244 kW) |
| Combustion Engine | 2.5 L |
| Electric Motor Output | 136 HP (101 kW) |
| AC Charging | 11 kW |
| DC Fast Charging | Yes (40 kW) |
| Seating Capacity | 5 Seats |
| Luggage / Boot Capacity | 570 L (Max: 570 L) |
| Dimensions (L × W × H) | 4995 × 1890 × 1710 mm |
| Curb Weight | 2100 kg |
| Euro NCAP Safety | ★★★★★ (5 Stars) |
| Manufacturer Warranty | 3 Years |
