Mercedes-Benz S-Class

2025 • Sedan

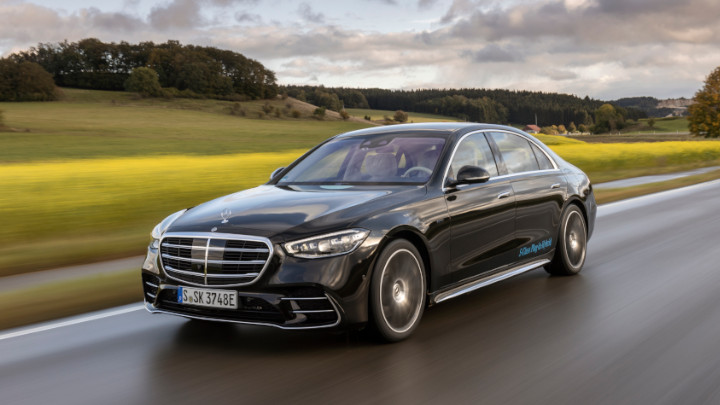

Mercedes-Benz S-Class gallery

Electric Range

77

km

Battery Capacity

28.6

kWh

Power Output

510

HP

Range Simulator

Test real-world range with different driving conditions and scenarios

⭐

Safety Rating

Adult Occupant
96%
Child Occupant
91%
Pedestrian
92%
Safety Assist
75%
5/5
Euro NCAP
2021
Source: Euro NCAP

BATTERY

28.6 kWh

Battery size in kilowatt hours

RANGE (KM)

77 km (WLTP)

Mileage in kilometers according to the WLTP/EPA standard

ON-BOARD CHARGER (AC)

7,2 kW

Maximum charging power AC

MAX CHARGING POWER (DC)

Not supported

Maximum charging power with fast charging/lightning charging

CHARGING SOCKET (AC)

Type 2Mennekes

Charging socket in the car for normal charging

FAST CHARGING (DC)

Not supported

Charging socket in the car for fast charging

General

Brand
Mercedes-Benz
Model
S-Class
Year
2025
Segment
Sedan
Battery Architecture
modular

Electric Performance

AC Charge Time
4.5 hours
DC Charge Time
N/A minutes
Battery Chemistry
NCM
Battery Voltage
400V

Engine & Performance

Power
510 HP
Engine
3L
Fuel Consumption
1.8 L/100km
CO₂ Emission
41 g/km
Electric Motor Power
200 HP
Emission Standard
Euro 6e

Comfort & Space

Trunk Volume
325 L
Seats
5
Warranty
3 years
Country Availability
DE,FR,UK,IT,ES
Weight
2575 kg
Length
5179 mm
Width
1921 mm
Height
1503 mm
Wheelbase
3106 mm
Max Trunk Volume
325 L

Key Technical Specifications — Mercedes-Benz S-Class (2025)

Official manufacturer and WLTP homologated technical data sheet for Mercedes-Benz S-Class plug-in hybrid.

Technical specifications sheet for Mercedes-Benz S-Class (2025) Plug-in Hybrid
Specification ParameterOfficial Value
Vehicle ModelMercedes-Benz S-Class
WLTP Electric Range77 km
Battery Capacity28.6 kWh
WLTP Fuel Consumption1.8 L / 100 km
CO₂ Emissions41 g / km
System Power Output510 HP (380 kW)
Combustion Engine3 L
Electric Motor Output200 HP (149 kW)
AC Charging7.2 kW
DC Fast ChargingNot supported
Seating Capacity5 Seats
Luggage / Boot Capacity325 L (Max: 325 L)
Dimensions (L × W × H)5179 × 1921 × 1503 mm
Curb Weight2575 kg
Euro NCAP Safety★★★★★ (5 Stars)
Manufacturer Warranty3 Years
