Renault Rafale

2025 • SUV

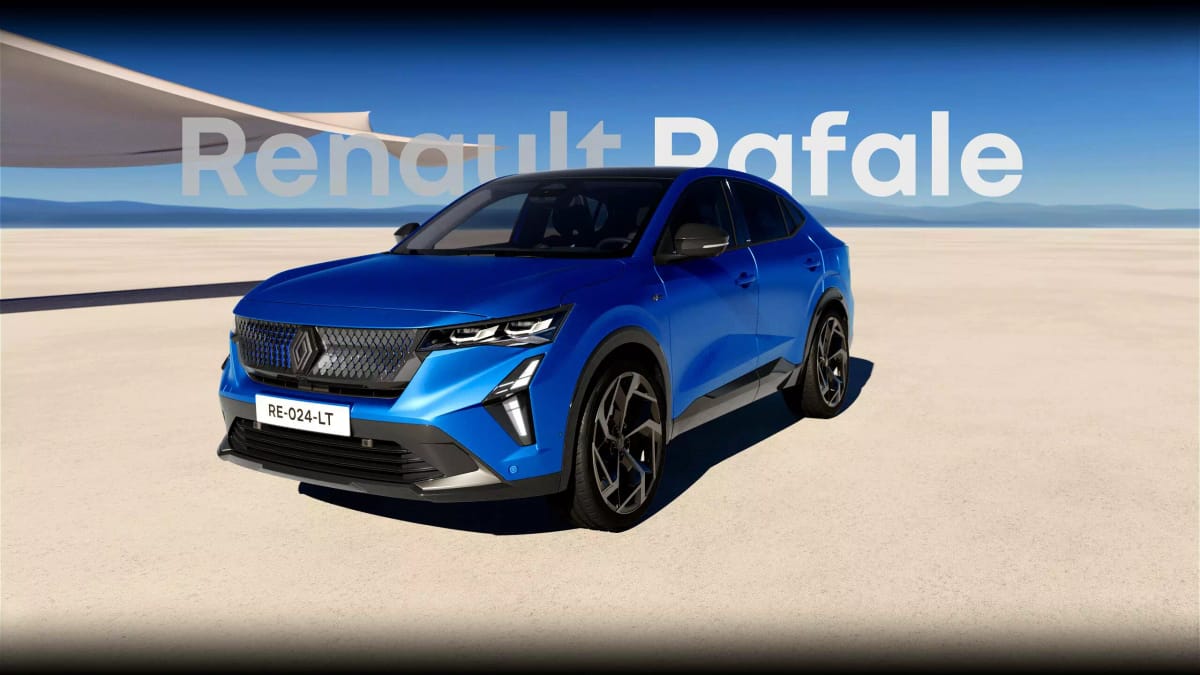

Renault Rafale gallery

Electric Range

100

km

Battery Capacity

22

kWh

Power Output

300

HP

Range Simulator

Test real-world range with different driving conditions and scenarios

⭐

Safety Rating

Adult Occupant
89%
Child Occupant
88%
Pedestrian
72%
Safety Assist
75%
5/5
Euro NCAP
2024
Source: Euro NCAP

BATTERY

22 kWh

Battery size in kilowatt hours

RANGE (KM)

100 km (WLTP)

Mileage in kilometers according to the WLTP/EPA standard

ON-BOARD CHARGER (AC)

3,6 kW

Maximum charging power AC

MAX CHARGING POWER (DC)

Not supported

Maximum charging power with fast charging/lightning charging

CHARGING SOCKET (AC)

Type 2Mennekes

Charging socket in the car for normal charging

FAST CHARGING (DC)

Not supported

Charging socket in the car for fast charging

General

Brand
Renault
Model
Rafale
Year
2025
Segment
SUV
Battery Architecture
modular

Electric Performance

AC Charge Time
2.5 hours
DC Charge Time
N/A minutes
Battery Chemistry
NCM
Battery Voltage
400V

Engine & Performance

Power
300 HP
Engine
1.6L
Fuel Consumption
1.2 L/100km
CO₂ Emission
27 g/km
Electric Motor Power
160 HP
Emission Standard
Euro 6d

Comfort & Space

Trunk Volume
530 L
Seats
5
Warranty
3 years
Country Availability
DE,FR,UK,PL
Weight
1934 kg
Length
4710 mm
Width
1860 mm
Height
1610 mm
Wheelbase
2734 mm
Max Trunk Volume
1826 L

Key Technical Specifications — Renault Rafale (2025)

Official manufacturer and WLTP homologated technical data sheet for Renault Rafale plug-in hybrid.

Technical specifications sheet for Renault Rafale (2025) Plug-in Hybrid
Specification ParameterOfficial Value
Vehicle ModelRenault Rafale
WLTP Electric Range100 km
Battery Capacity22 kWh
WLTP Fuel Consumption1.2 L / 100 km
CO₂ Emissions27 g / km
System Power Output300 HP (224 kW)
Combustion Engine1.6 L
Electric Motor Output160 HP (119 kW)
AC Charging3.6 kW
DC Fast ChargingNot supported
Seating Capacity5 Seats
Luggage / Boot Capacity530 L (Max: 1826 L)
Dimensions (L × W × H)4710 × 1860 × 1610 mm
Curb Weight1934 kg
Euro NCAP Safety★★★★★ (5 Stars)
Manufacturer Warranty3 Years
