Back to Models

Toyota RAV4

2025 • SUV

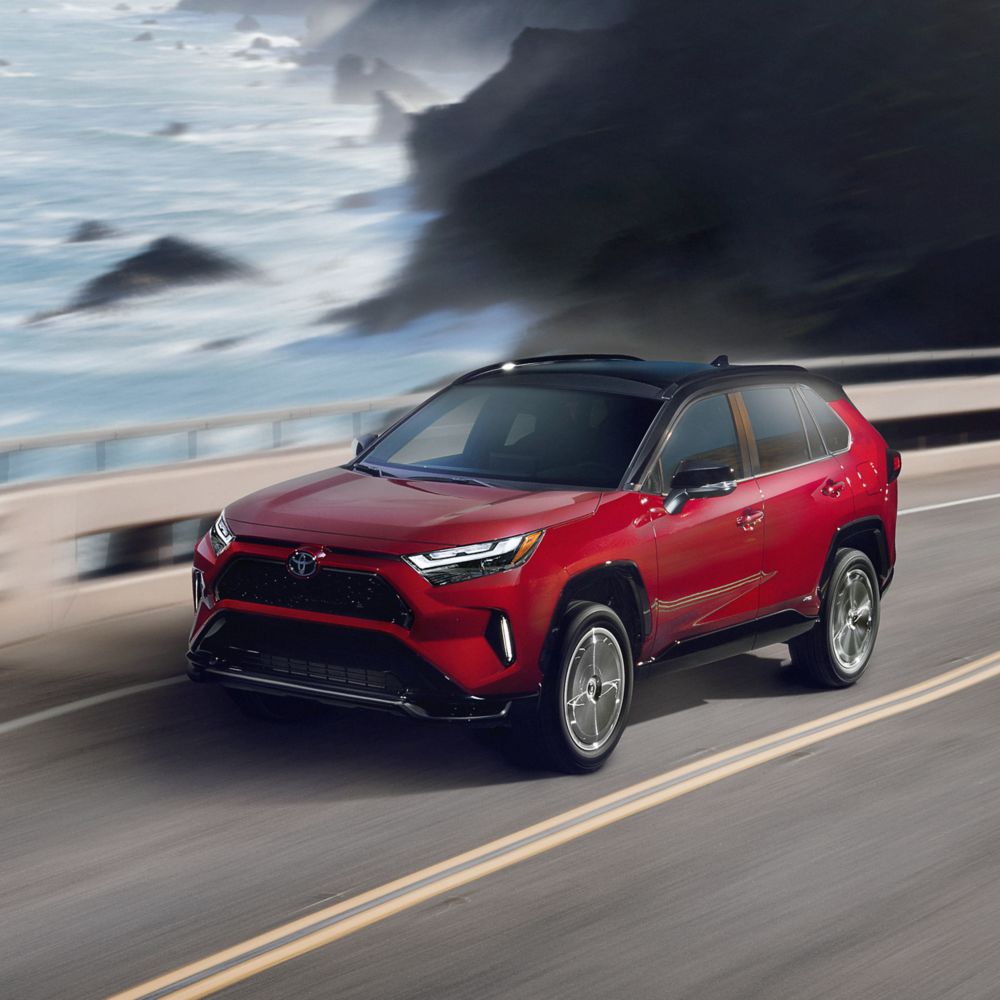

Toyota RAV4 gallery

Electric Range

75

km

Battery Capacity

18.1

kWh

Power Output

306

HP

Range Simulator

Test real-world range with different driving conditions and scenarios

⭐

Safety Rating

Adult Occupant
97%
Child Occupant
87%
Pedestrian
87%
Safety Assist
76%
5/5
Euro NCAP
2019
Source: Euro NCAP

BATTERY

18.1 kWh

Battery size in kilowatt hours

RANGE (KM)

75 km (WLTP)

Mileage in kilometers according to the WLTP/EPA standard

ON-BOARD CHARGER (AC)

RAV4 Plug-in Hybrid: 6.6 kW AC onboard charger. Note: RAV4 Prime SE (2022) uses 3.3 kW

6,6 kW

Maximum charging power AC

MAX CHARGING POWER (DC)

Not supported

Maximum charging power with fast charging/lightning charging

CHARGING SOCKET (AC)

Type 2Mennekes

Charging socket in the car for normal charging

FAST CHARGING (DC)

Not supported

Charging socket in the car for fast charging

General

Brand
Toyota
Model
RAV4
Year
2025
Segment
SUV
Battery Architecture
modular

Electric Performance

AC Charge Time
4.5 hours
DC Charge Time
N/A minutes
Battery Chemistry
NCM
Battery Voltage
355V

Engine & Performance

Power
306 HP
Engine
1.8L
Fuel Consumption
1 L/100km
CO₂ Emission
22 g/km
Electric Motor Power
54 HP
Emission Standard
Euro 6d-ISC-FCM

Comfort & Space

Trunk Volume
490 L
Seats
5
Warranty
5 years
Country Availability
DE,FR,UK,IT,ES
Weight
1880 kg
Length
4600 mm
Width
1855 mm
Height
1685 mm
Wheelbase
2690 mm
Max Trunk Volume
1604 L

Key Technical Specifications — Toyota RAV4 (2025)

Official manufacturer and WLTP homologated technical data sheet for Toyota RAV4 plug-in hybrid.

Technical specifications sheet for Toyota RAV4 (2025) Plug-in Hybrid
Specification ParameterOfficial Value
Vehicle ModelToyota RAV4
WLTP Electric Range75 km
Battery Capacity18.1 kWh
WLTP Fuel Consumption1 L / 100 km
CO₂ Emissions22 g / km
System Power Output306 HP (228 kW)
Combustion Engine1.8 L
Electric Motor Output54 HP (40 kW)
AC Charging6.6 kW
DC Fast ChargingNot supported
Seating Capacity5 Seats
Luggage / Boot Capacity490 L (Max: 1604 L)
Dimensions (L × W × H)4600 × 1855 × 1685 mm
Curb Weight1880 kg
Euro NCAP Safety★★★★★ (5 Stars)
Manufacturer Warranty5 Years
