Volvo V90

2025 • Station/Estate

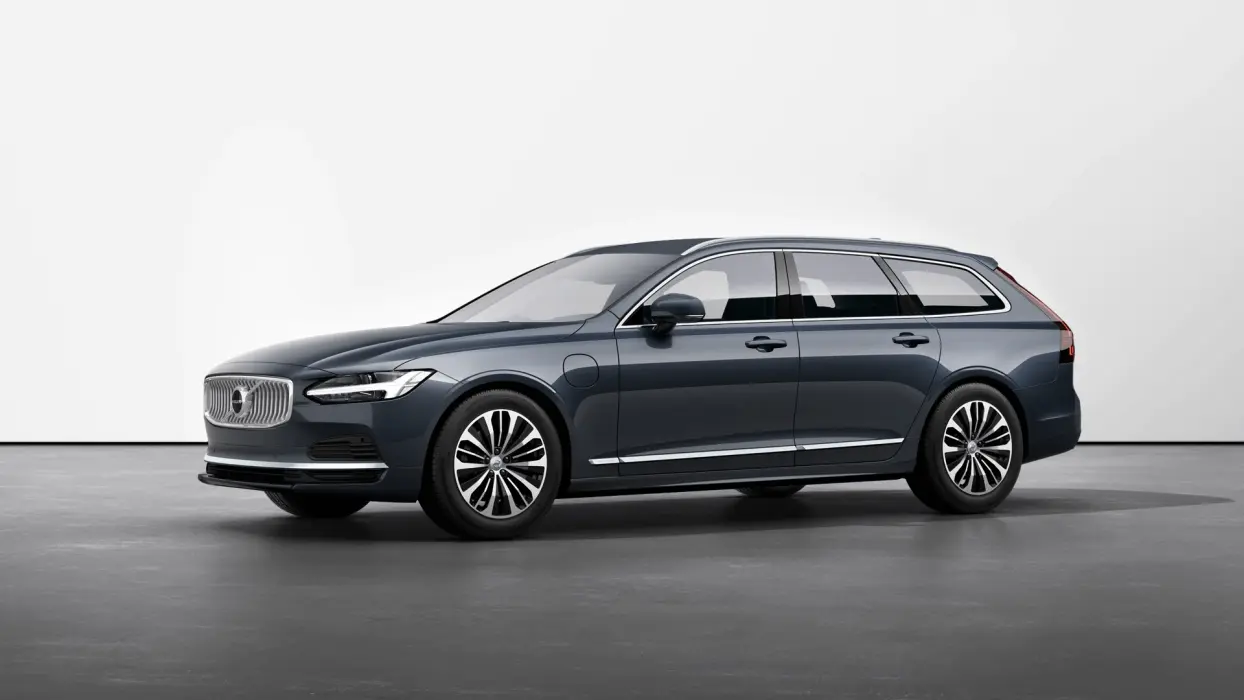

Volvo V90 gallery

Electric Range

84

km

Battery Capacity

18.8

kWh

Power Output

340

HP

Range Simulator

Test real-world range with different driving conditions and scenarios

⭐

Safety Rating

Adult Occupant
98%
Child Occupant
87%
Pedestrian
87%
Safety Assist
76%
5/5
Euro NCAP
2019
Source: Euro NCAP

BATTERY

18.8 kWh

Battery size in kilowatt hours

RANGE (KM)

84 km (WLTP)

Mileage in kilometers according to the WLTP/EPA standard

ON-BOARD CHARGER (AC)

6.4 kW in 2024 and later models (two/three-phase charging), 3.6 kW in older models

6,4 kW

Maximum charging power AC

MAX CHARGING POWER (DC)

Not supported

Maximum charging power with fast charging/lightning charging

CHARGING SOCKET (AC)

Type 2Mennekes

Charging socket in the car for normal charging

FAST CHARGING (DC)

Not supported

Charging socket in the car for fast charging

General

Brand
Volvo
Model
V90
Year
2025
Segment
Station/Estate
Battery Architecture
modular

Electric Performance

AC Charge Time
4 hours
DC Charge Time
N/A minutes
Battery Chemistry
NCM

Engine & Performance

Power
340 HP
Engine
2L
Fuel Consumption
2.1 L/100km
CO₂ Emission
47 g/km

Comfort & Space

Trunk Volume
560 L
Seats
5
Warranty
3 years
Country Availability
DE,FR,UK,IT,ES
Weight
2100 kg

Key Technical Specifications — Volvo V90 (2025)

Official manufacturer and WLTP homologated technical data sheet for Volvo V90 plug-in hybrid.

Technical specifications sheet for Volvo V90 (2025) Plug-in Hybrid
Specification ParameterOfficial Value
Vehicle ModelVolvo V90
WLTP Electric Range84 km
Battery Capacity18.8 kWh
WLTP Fuel Consumption2.1 L / 100 km
CO₂ Emissions47 g / km
System Power Output340 HP (254 kW)
Combustion Engine2 L
AC Charging6.4 kW
DC Fast ChargingNot supported
Seating Capacity5 Seats
Luggage / Boot Capacity560 L
Curb Weight2100 kg
Euro NCAP Safety★★★★★ (5 Stars)
Manufacturer Warranty3 Years
