Back to Models

Volkswagen Passat

2025 • Estate

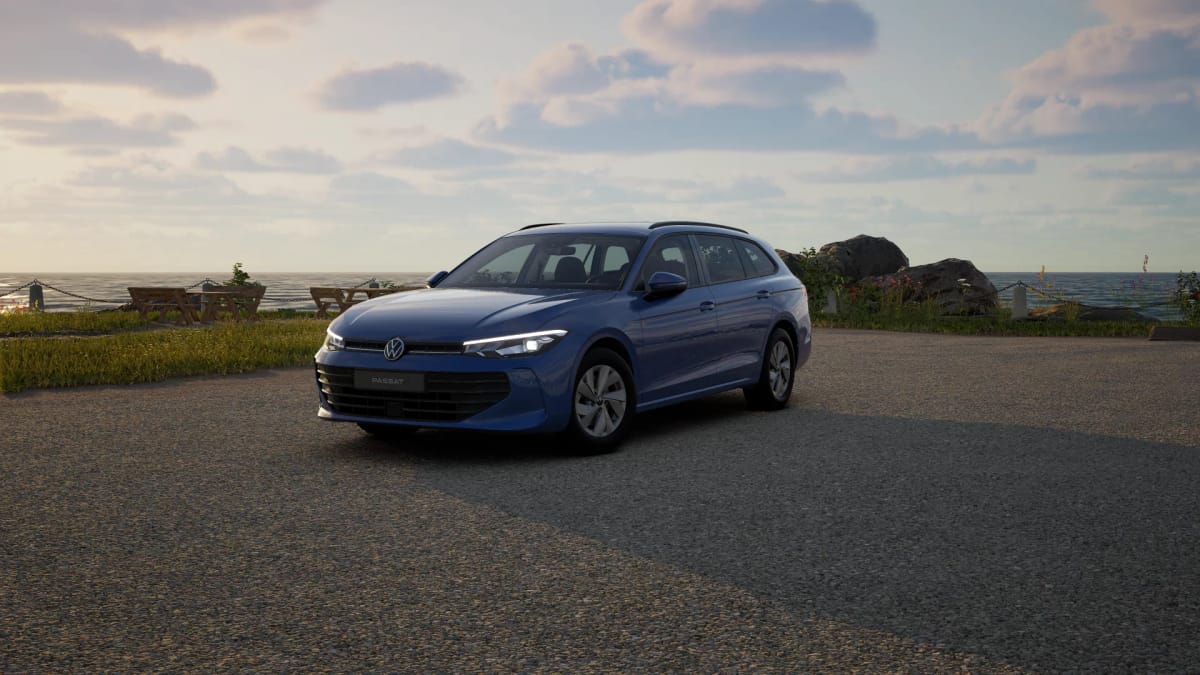

Volkswagen Passat gallery

Electric Range

133

km

Battery Capacity

25.7

kWh

Power Output

204

HP

Range Simulator

Test real-world range with different driving conditions and scenarios

⭐

Safety Rating

Adult Occupant
95%
Child Occupant
89%
Pedestrian
76%
Safety Assist
78%
5/5
Euro NCAP
2019
Source: Euro NCAP

BATTERY

25.7 kWh

Battery size in kilowatt hours

RANGE (KM)

133 km (WLTP)

Mileage in kilometers according to the WLTP/EPA standard

ON-BOARD CHARGER (AC)

11,0 kW

Maximum charging power AC

MAX CHARGING POWER (DC)

50 kW DC (CCS Combo 2)

Maximum charging power with fast charging/lightning charging

CHARGING SOCKET (AC)

Type 2Mennekes

Charging socket in the car for normal charging

FAST CHARGING (DC)

50 kW DC (CCS Combo 2)

Charging socket in the car for fast charging

General

Brand
Volkswagen
Model
Passat
Year
2025
Segment
Estate
Battery Architecture
modular

Electric Performance

AC Charge Time
3.5 hours
DC Charge Time
N/A minutes
Battery Chemistry
NCM
Battery Voltage
400V

Engine & Performance

Power
204 HP
Engine
1.5L
Fuel Consumption
0.4 L/100km
CO₂ Emission
9 g/km
Electric Motor Power
115 HP
Emission Standard
Euro 6 EA

Comfort & Space

Trunk Volume
650 L
Seats
5
Warranty
3 years
Country Availability
DE,FR,UK,IT,ES
Weight
1780 kg
Length
4917 mm
Width
1849 mm
Height
1521 mm
Wheelbase
2841 mm
Max Trunk Volume
650 L

Key Technical Specifications — Volkswagen Passat (2025)

Official manufacturer and WLTP homologated technical data sheet for Volkswagen Passat plug-in hybrid.

Technical specifications sheet for Volkswagen Passat (2025) Plug-in Hybrid
Specification ParameterOfficial Value
Vehicle ModelVolkswagen Passat
WLTP Electric Range133 km
Battery Capacity25.7 kWh
WLTP Fuel Consumption0.4 L / 100 km
CO₂ Emissions9 g / km
System Power Output204 HP (152 kW)
Combustion Engine1.5 L
Electric Motor Output115 HP (86 kW)
AC Charging11 kW
DC Fast ChargingYes (50 kW)
Seating Capacity5 Seats
Luggage / Boot Capacity650 L (Max: 650 L)
Dimensions (L × W × H)4917 × 1849 × 1521 mm
Curb Weight1780 kg
Euro NCAP Safety★★★★★ (5 Stars)
Manufacturer Warranty3 Years
